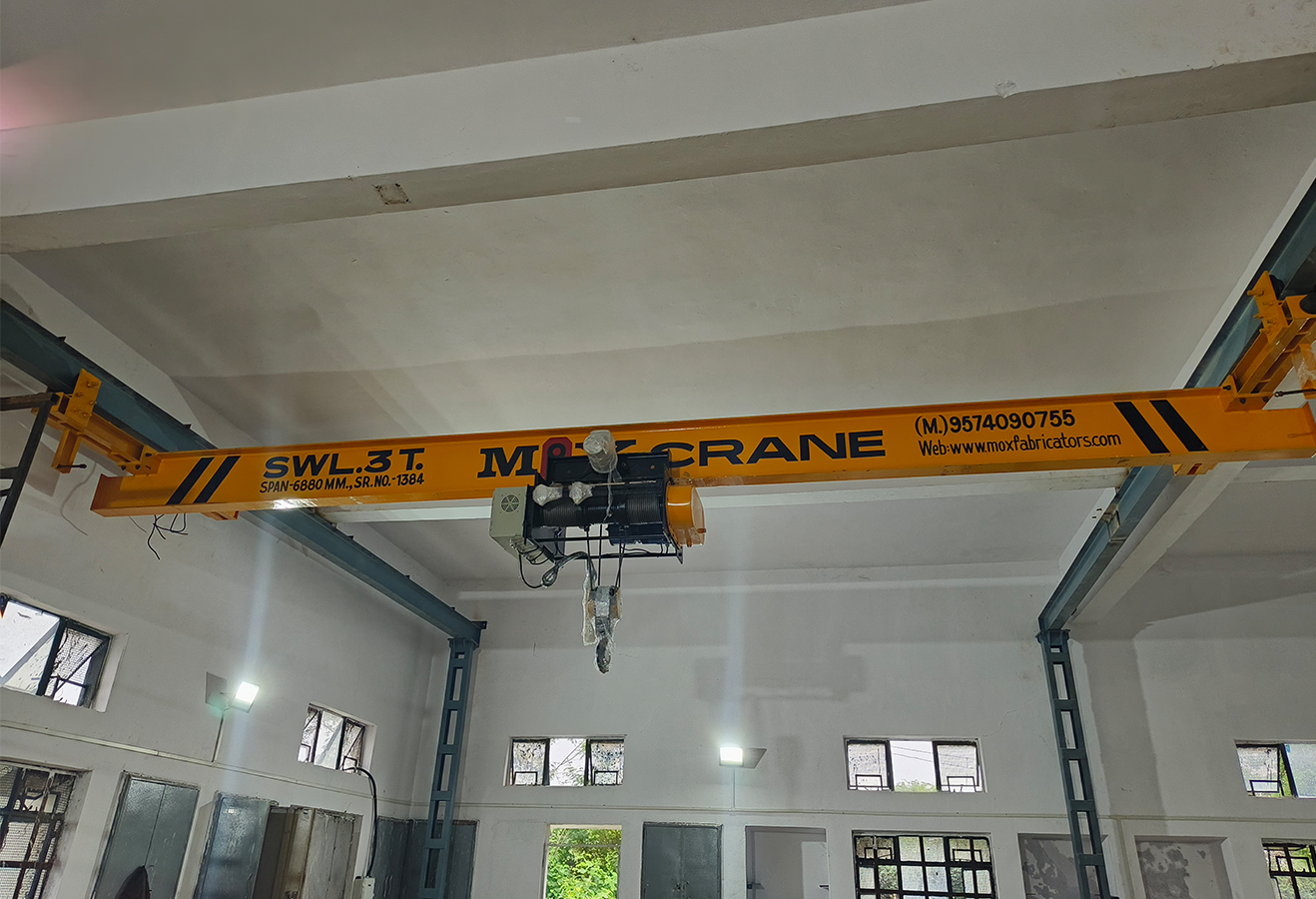

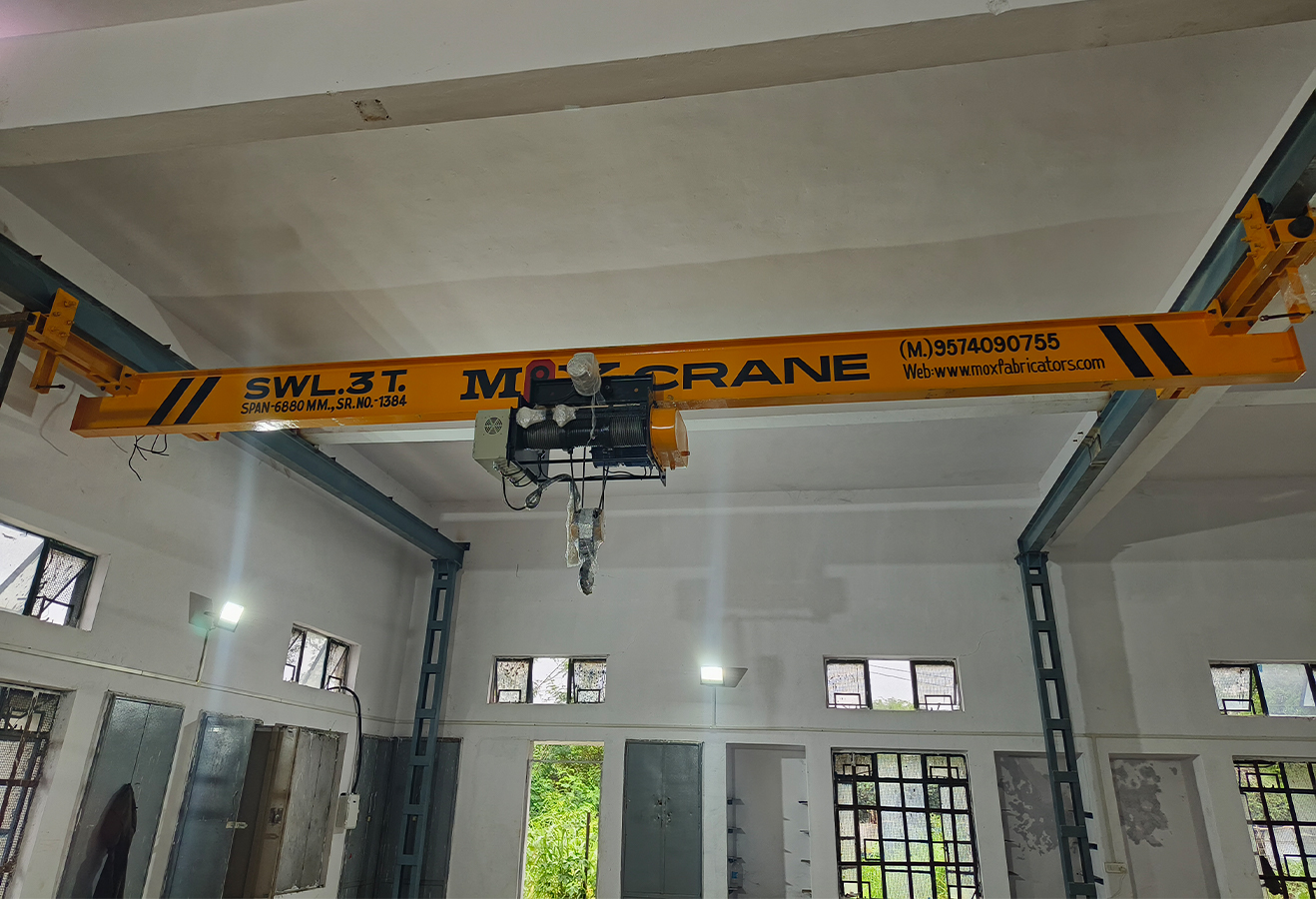

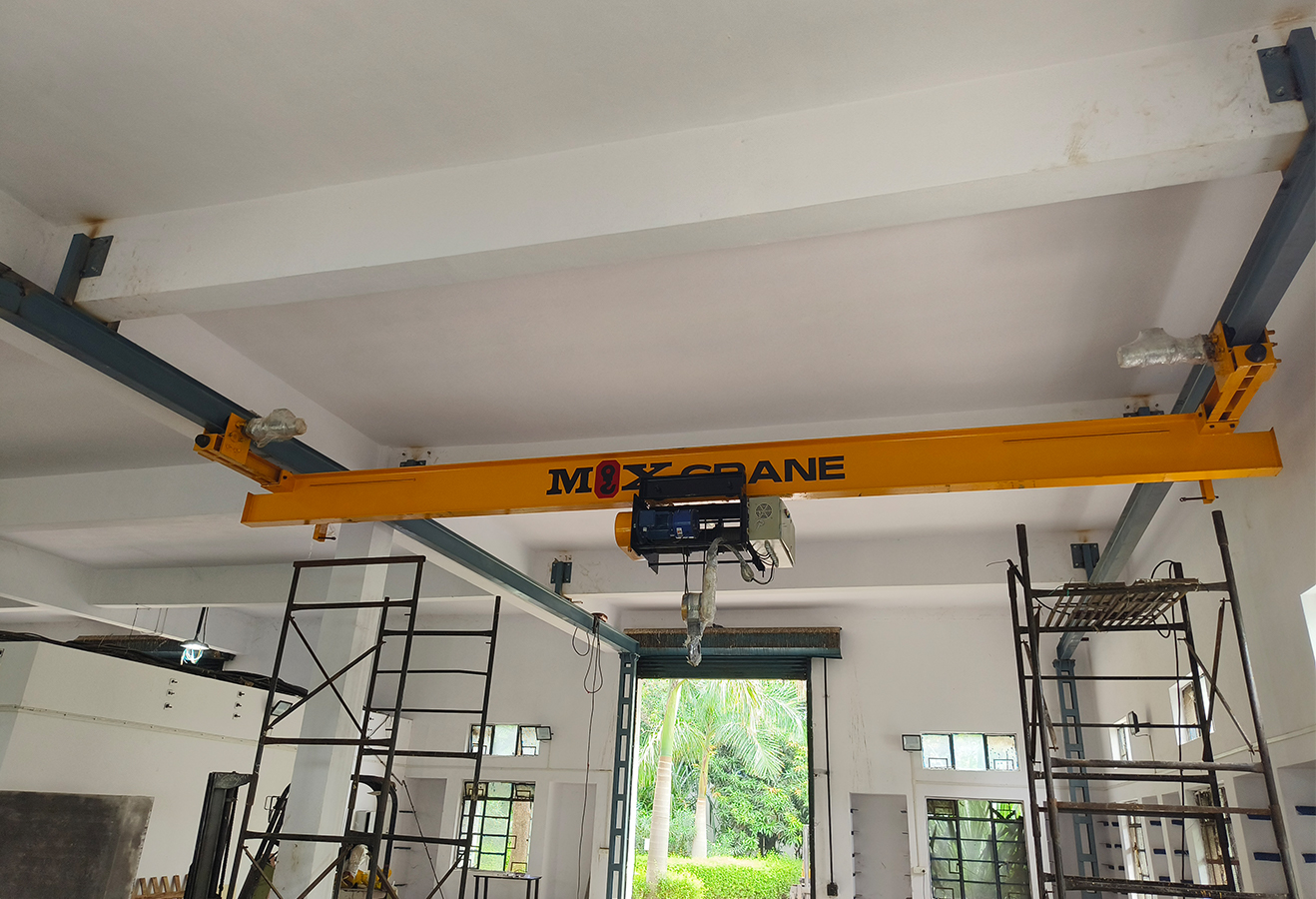

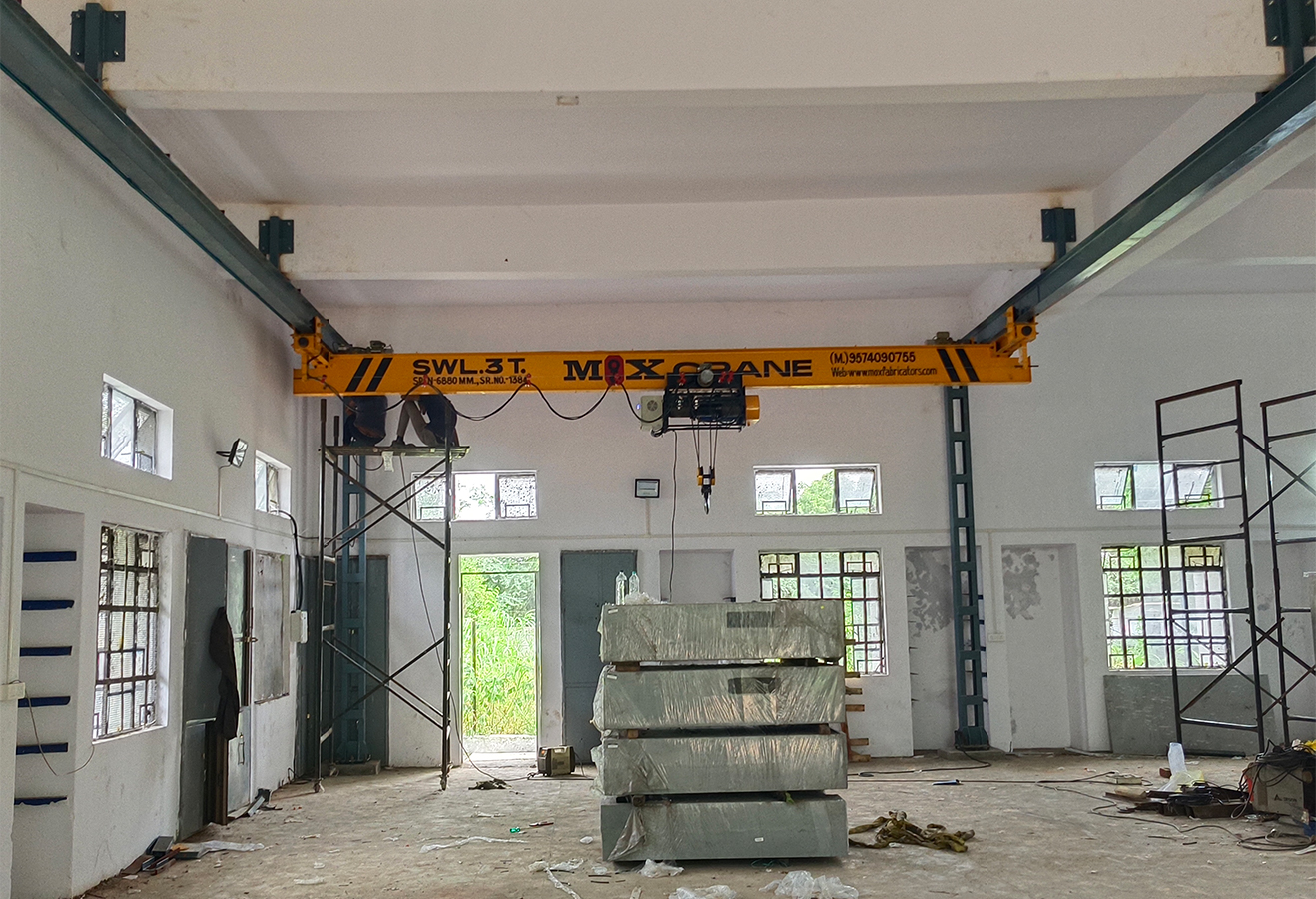

Under slung single girder overhead cranes are sometimes called under running crane/single girder under slung crane/under running bridge crane. Commonly used in factory buildings without load-bearing columns, but the roof can be load-bearing.
Under slung cranes have standard capacities up to 10 tons. Special configurations can be designed to accommodate up to 32 tons. Under slung cranes offer excellent side approaches, law headroom and can be supported on runways hung from existing building members if adequate.
span Length: 3 To 30 Meters
Working Load: 500 Kgs To 10000 Kgs
As per the IS 3177 & 807, load testing of the crane is done at 125% of SWL.
Easily Adjustable Limit Switches
Height Of Lift: As Per Customer Requirements
Class Of Duty / Standards : Equivalent To M3, M5, M7, M8
Lifting speed: As per client requirement and depends on their application of use
Crane Control: From Floor Through Pendent Push Buttons, and also wireless Radio Remote Control
Voltage lower protection function.
Advanced Control Systems: Equipped with features like variable frequency drive (VFD) for smooth speed control, anti-sway technology, and precise positioning.
Brakes: Built-in Brakes For Hoisting, Cross Travel And Long Travel Motions
